Video door entry systems are relatively simple pieces of equipment to install, based generally around x3 pieces of equipment:

  • Video Door intercom system
  • Screen (with door release button)
  • Door release mechanism: this may be something like a ‘Maglock’ or a ‘Yale door release’

For the installation all you’re doing is connecting the door intercom to the screen and the screen (with door release button) to the door release mechanism – meaning that you can see who’s at the door and then press a button to release the lock on the door.

Video entry system & Maglock wiring diagram

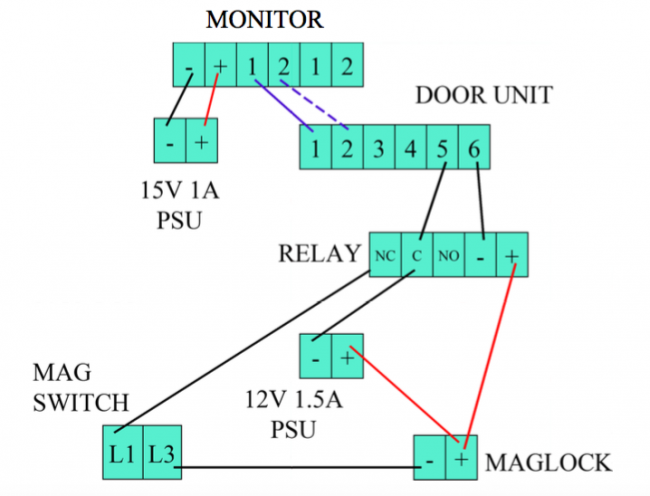

The following is a diagram showing how a Maglock (magnetic lock) can be easily wired to a video door entry system – in this case, using the AccessVu system.

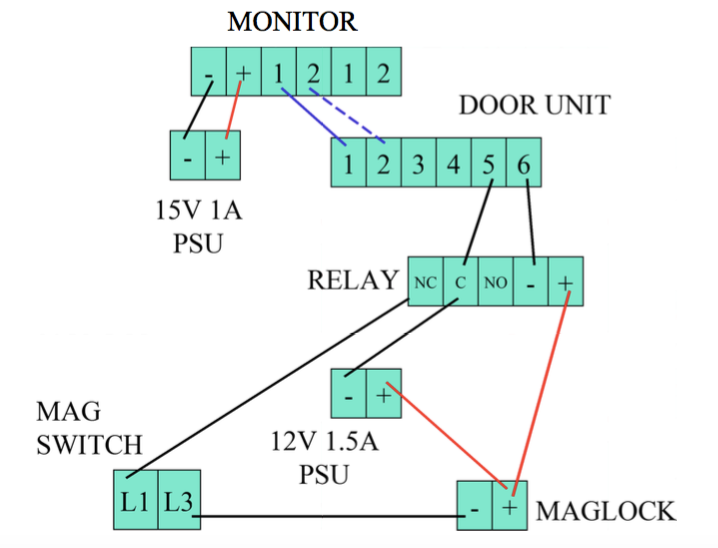

Door entry wiring diagram

Maglock Z bracket fixing options

Depending on which way the door opens, will depend on how to install the maglock (magnetic lock) – and also whether you need a Z bracket or not.

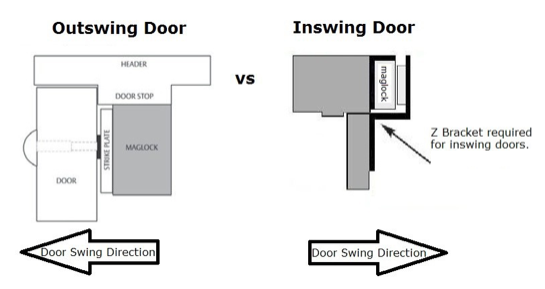

The following is a diagram that gives an indication of how to mount a Maglock and use a Z bracket in the various situations . . .

z bracket diagram

Buying Video Door entry kits

If you’re looking to buy a video door entry kit with a Maglock included (along with all the peripheries like Z bracket etc.) we’d recommend the AccessVu Matlock kit – which retails for £269.  BUY KIT HERE >>

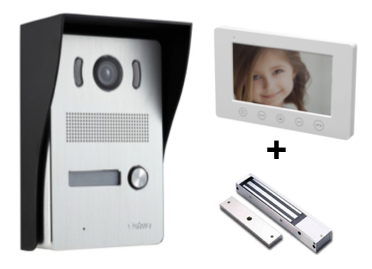

Video door entry system with maglock

For your money (£269 inc VAT) you get:

  • Video door intercom (either Flush-mounted or Surface-mounted)
  • Video screen
  • Maglock (magnetic lock)
  • Z-bracket
  • Door-release button
  • Relay
  • Power Supply Unit x2 (one for the intercom system and one for the Matlock)

SmartSecurity.Store provides great value video door entry systems from the AccessVu brand – starting at £169 for an intercom and screen package.  View more here >>
